SX-CAM10

SIGNUX CAM10

Name: SIGNUX CAM10
Brand: SIGNUX
SKU: SX-CAM10

M10 four-contact lead with a free end

Lead with an M10 four-contact connector at one end and the four wires loose, stripped and tinned, at the other. In a male or female version, 0.2 or 2 m.

One end carries the M10 four-contact connector; the other, the four wires loose, stripped 20 mm and tinned 3 mm at the factory. Each wire goes to a fixed contact, and each contact has its colour.

The connector is keyed, so it goes in one way only. The male and female versions are the two halves of the same pair; the female also carries an O-ring and a 12 × 14 mm fixing flange.

Connector: M10
Contacts: 4
Wires: 4 × 22 AWG

The two CAM10 leads on a white background: on the left the female version, with four gold sockets and a red O-ring; on the right the male, with four gold pins. Both with a black cable and the four stripped wires at the other end

What sets it apart

M10 four-contact connector

Red, black, white and yellow, each colour on its contact.

Loose wires at the other end

Stripped 20 ± 3 mm and tinned 3 mm.

22 AWG UL2464 cable

Black PVC, Ø 5.0 ± 0.2 mm.

Male or female, 0.2 or 2 m

The female, with an O-ring and a fixing flange.

Configurations

Connector / output	Cable length	Part number
M10 male, 4 contacts	0.2 m	SX-CAM10-M-02M
M10 male, 4 contacts	2 m	SX-CAM10-M-2M
M10 female, 4 contacts, with O-ring	0.2 m	SX-CAM10-H-02M
M10 female, 4 contacts, with O-ring	2 m	SX-CAM10-H-2M

Specifications

General

Type: Connection lead
Connector: M10Male or female, depending on version
Contacts: 4Red, black, white and yellow
Orientation: KeyedGoes in one way only

Connector

Body, male version: 34 × Ø 10 mm
Body, female version: 33 × Ø 9.5 mmPlus a 12 × 14 mm fixing flange
Sealing: O-ringThe female version carries it

Cable

Wires: 4 × 22 AWG
Type: UL2464, black PVC
Outside diameter: 5.0 ± 0.2 mm
Length: 0.2 m · 2 mDepending on the version
Free end: Stripped 20 ± 3 mm, tinned 3 mm

Contact layout

Female, seen from the front: Red and black on top · yellow and white belowIt mirrors the male
Male, seen from the front: Black and red on top · white and yellow belowWith the key at the top

Gallery

The two CAM10 leads side by side on a white background: on the left the female version with four gold sockets and a red O-ring, on the right the male version with four gold pins — The two versions side by side: female on the left, male on the right

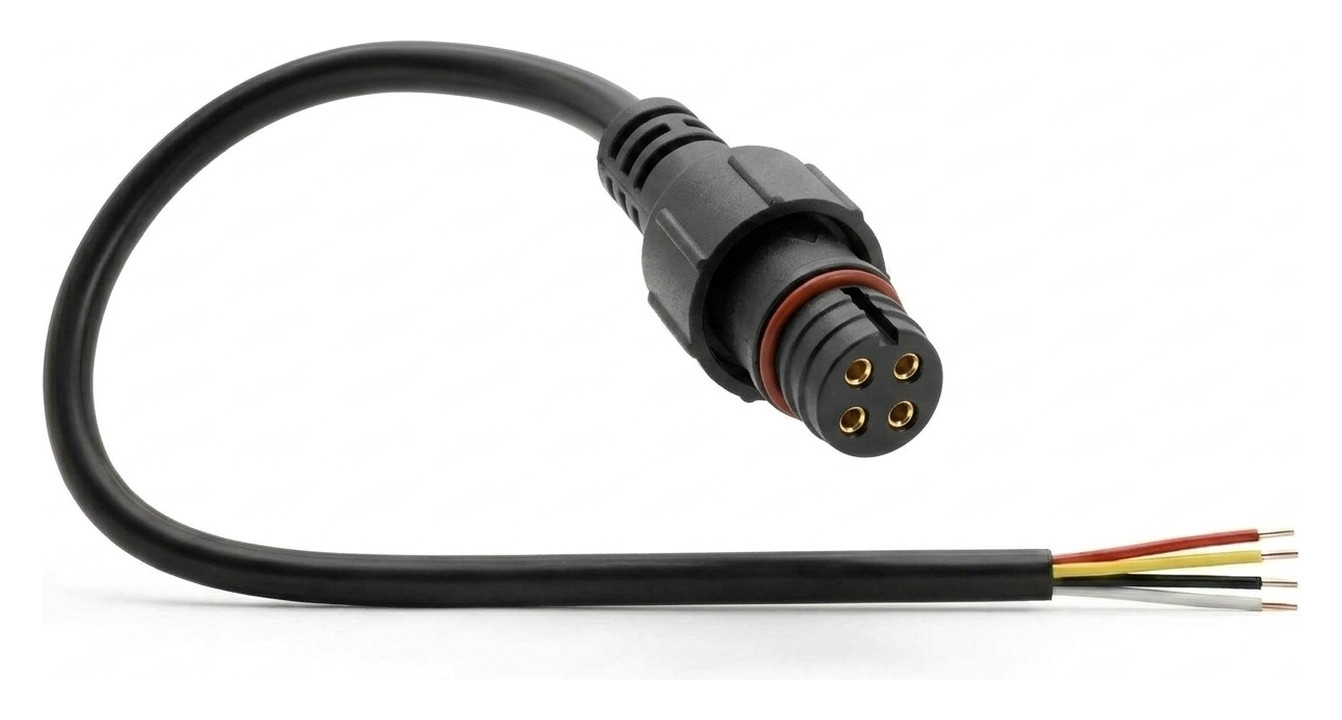

CAM10 lead in its female version on a white background, seen from the front: black connector with a red O-ring and four gold sockets, black cable and four stripped wires — The female version of the CAM10

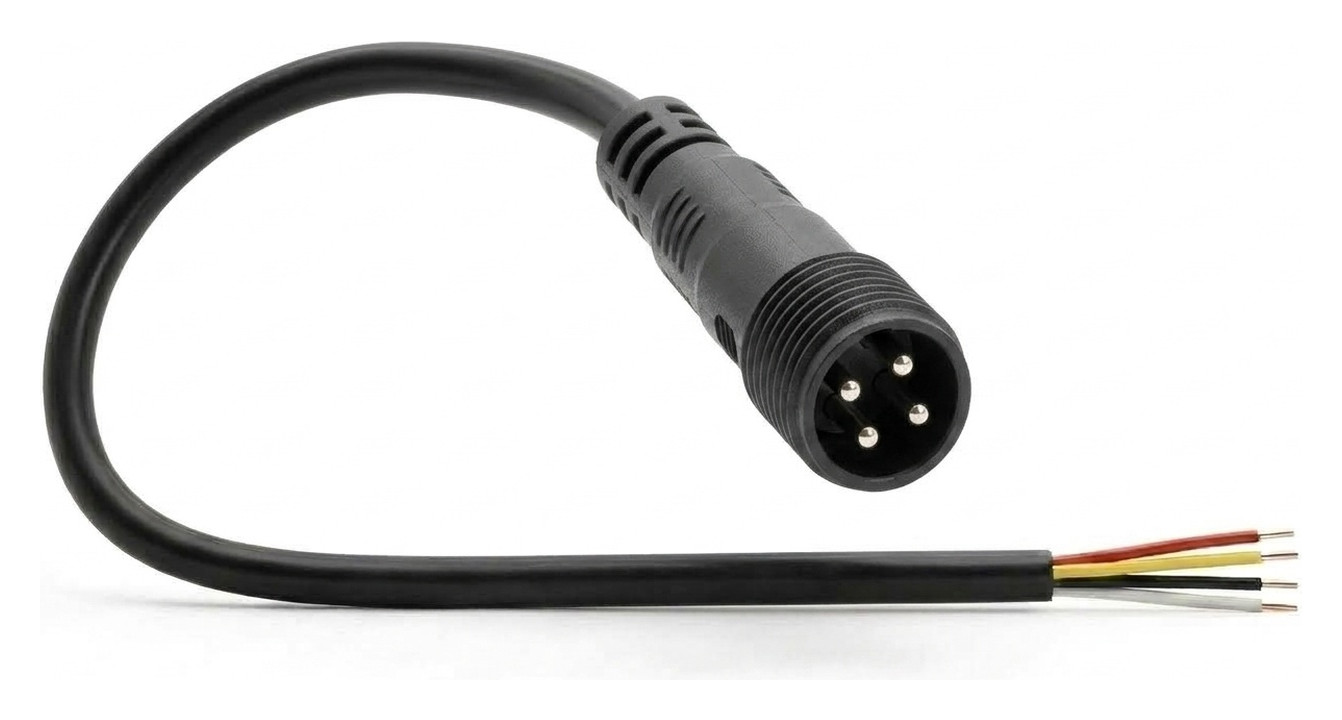

CAM10 lead in its male version on a white background, seen from the front: black threaded connector with four gold pins, black cable and four stripped wires in red, yellow, black and white — The male version of the CAM10

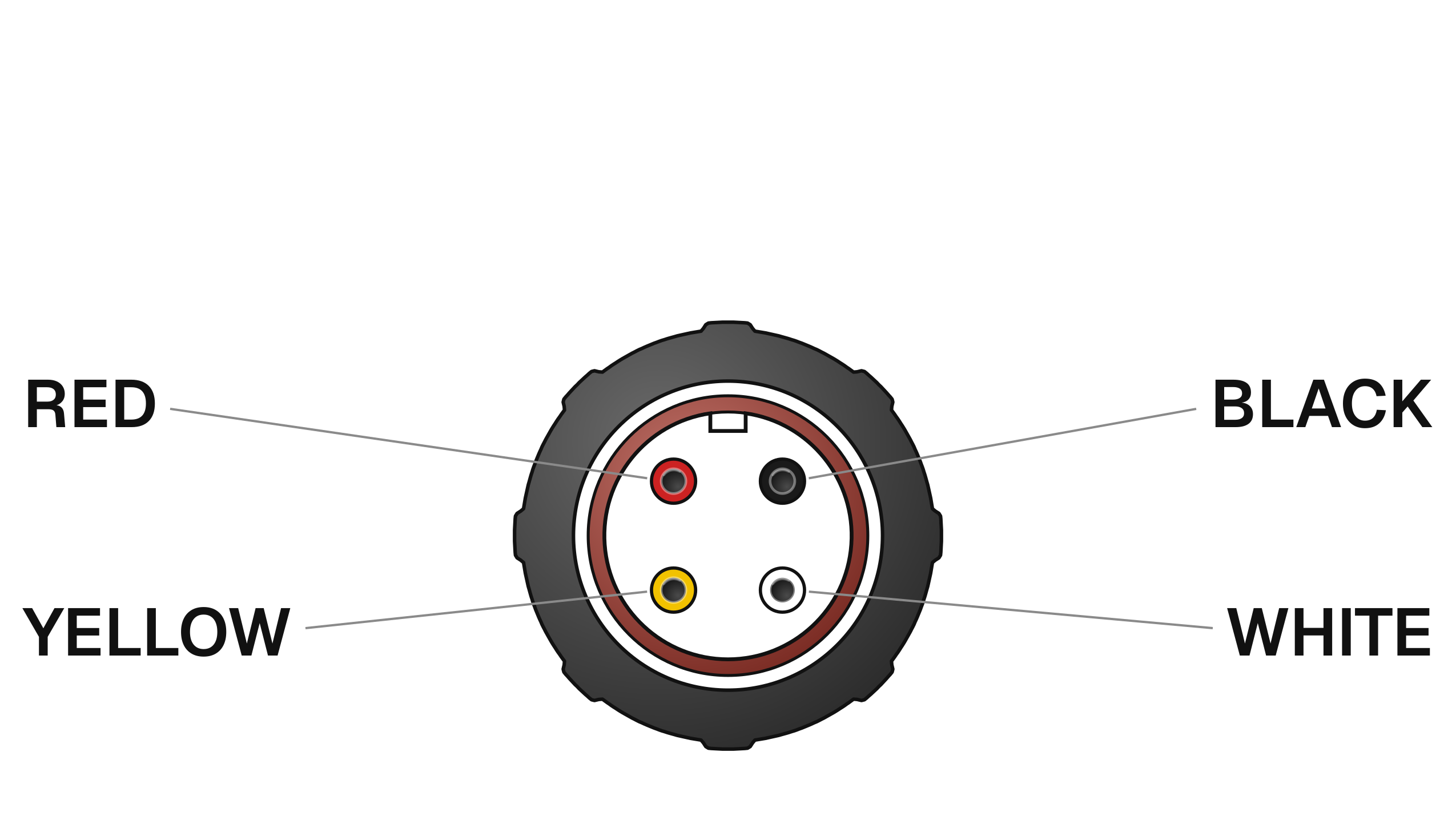

Diagram of the four contacts of the female CAM10 seen from the front, with the key at the top: red top left, black top right, yellow bottom left and white bottom right — The contact layout of the female version

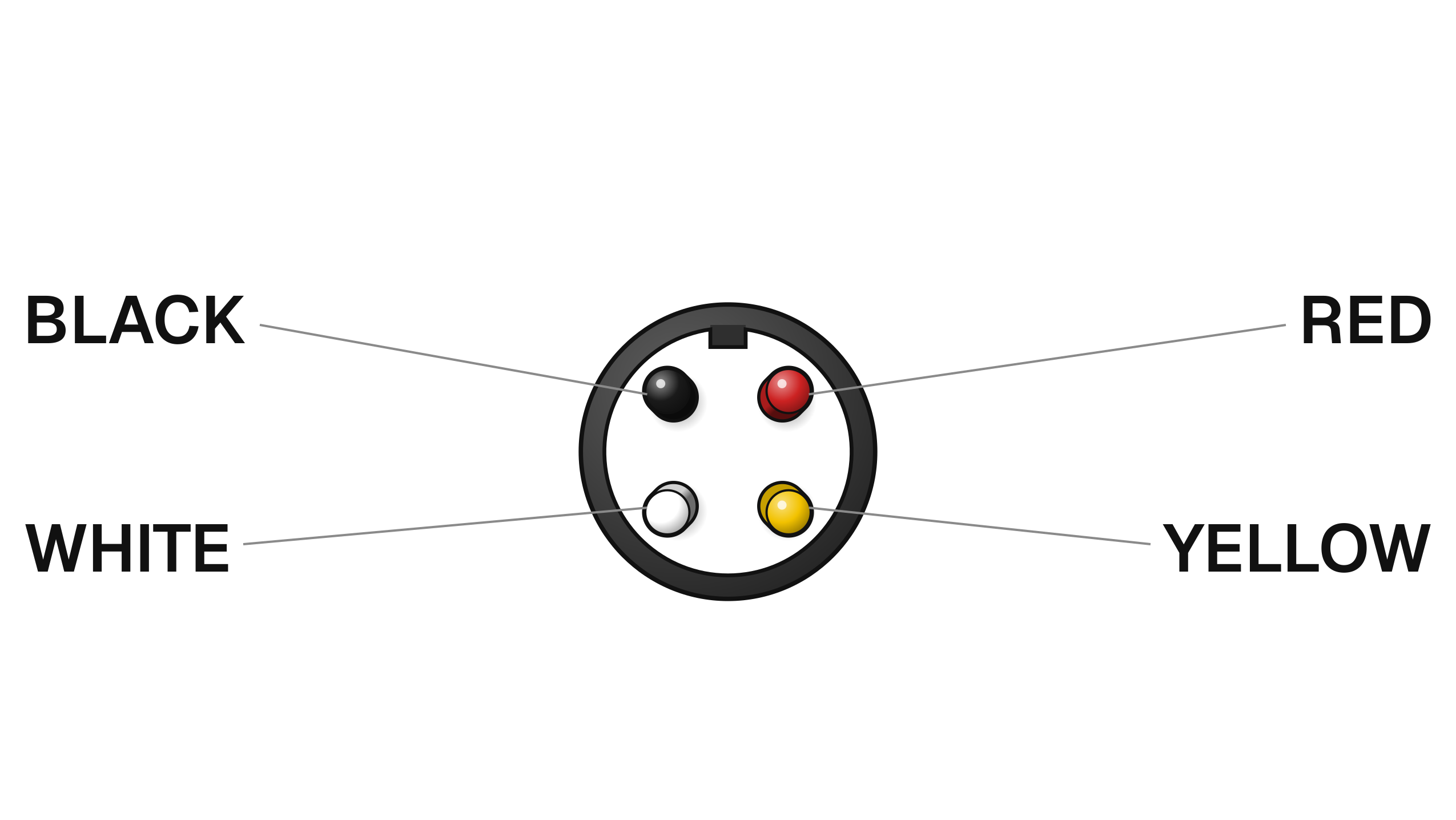

Diagram of the four contacts of the male CAM10 seen from the front, with the key at the top: black top left, red top right, white bottom left and yellow bottom right — The contact layout of the male version

Documentation

DatasheetDatasheet (v8)PDF · 654 KB
