SIGNUX ANT03 LoRa
868 MHz gain, held on by a magnet
Omnidirectional magnetic-mount antenna for the 868 MHz ISM band used by LoRa and LoRaWAN equipment in Europe.

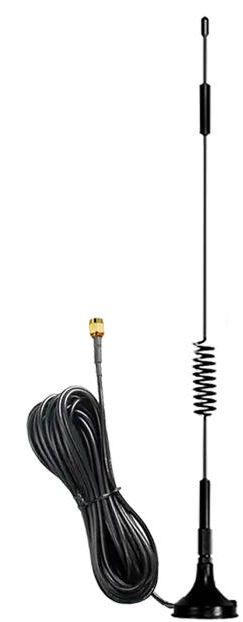

SX-ANT03-LORA adds 3 dBi of gain and, more to the point, it lets the antenna leave the enclosure: the radio stays inside the cabinet and the antenna goes on top of it, where there is something to radiate against.
The base is a magnet. It holds on any steel surface — a cabinet roof, a pole bracket, a machine frame — with no drilling and no mounting kit, and it can be moved afterwards if the coverage turns out to be better a metre away. That steel surface is not only a support: it works as the ground plane the antenna needs, so the same antenna sitting on plastic radiates worse than on a metal lid.
- Frequency band
- 868 MHz
- Gain
- 3 dBi
- Operating
- -40 to +80 °C
What sets it apart
868 MHz, 3 dBi
Tuned for the ISM band that LoRa and LoRaWAN use in Europe, with vertical polarisation and 50 Ω.
Sticks to steel, no drilling
A magnetic base holds it on a cabinet roof, a pole bracket or a machine frame. No bracket to fit, and it can be moved if the coverage turns out to be better a metre away.
-40 to +80 °C, RoHS
Outdoor temperature range, the same for storage, and ten years of storage life.
Configurations
| Connector / output | Cable length | Part number |
|---|---|---|
| RP-SMA male | 1.5 m | SX-ANT03-LORA-RP-15 |
| RP-SMA male | 3 m | SX-ANT03-LORA-RP-30 |
| SMA male | 1.5 m | SX-ANT03-LORA-SMA-15 |
| SMA male | 3 m | SX-ANT03-LORA-SMA-30 |
Specifications
General
- Type
- Omnidirectional antenna, magnetic mount
- Frequency band
- 868 MHz
- Intended use
- LoRa and LoRaWAN868 MHz ISM band
Electrical
- Gain
- 3 dBi
- VSWR
- 2.0Maximum
- Impedance
- 50 Ω
- Polarisation
- Vertical
Mechanical

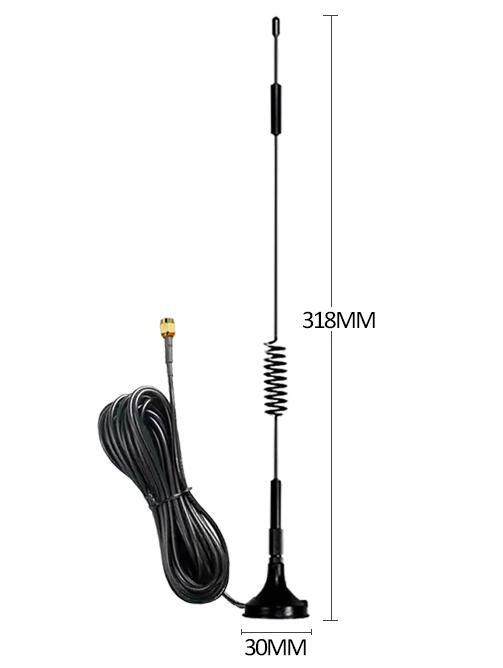

- Height
- 318 mm
- Magnetic base diameter
- 30 mm
- Mounting
- Magnetic base
- Connector

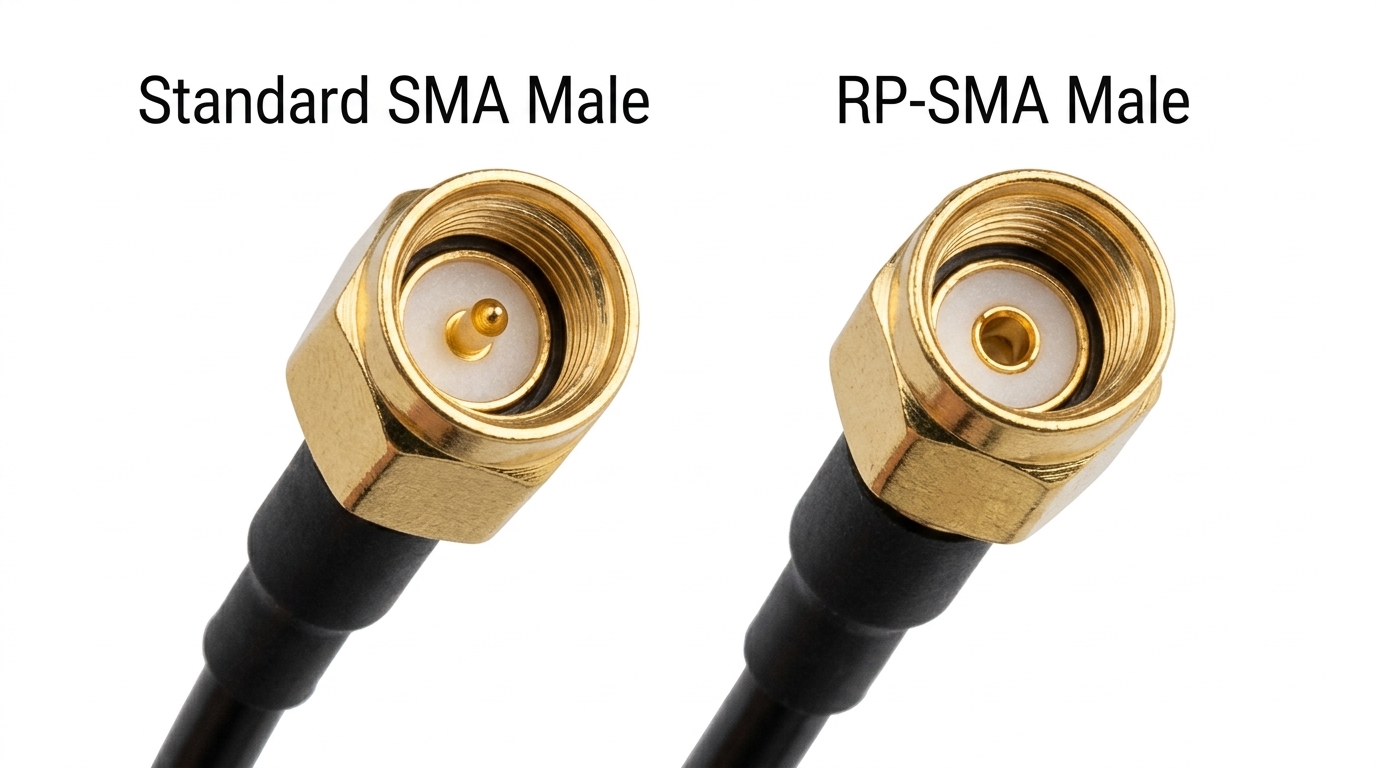

- RP-SMA male or SMA maleChosen when ordering
- Cable length
- 1.5 or 3 mChosen when ordering
Environment and compliance
- Operating temperature
- -40 to +80 °C
- Storage temperature
- -40 to +80 °C
- Storage life
- 10 years
- Compliance
- RoHS
